IVY Latching Relay
IVY specializes in the development and manufacturing of high-quality latching relays. We offer a line of latching relays spanning from 32A to 200A for single-phase Two-phase and three-phase switching purposes. our relays meet the industry's highest performance standards and offer the best value in the energy management market. In particular, we have developed an innovative relay switch-motor latching relay. IVY latching relays are highly customisable with many variants of terminal arrangements, which can be made to suit customer's needs. Shunts and current transformers can also be included to special order.

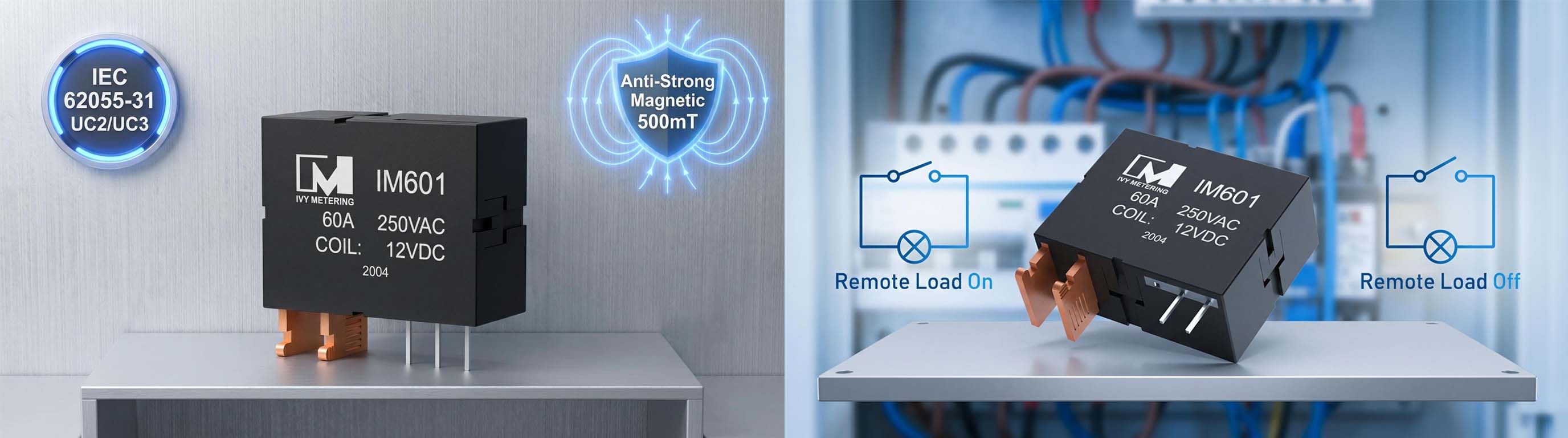

IM601 32A/40A/60A Bistable Latching Relay
Meet to IEC62055-31-2005—UC2 UC3
Meet the requirements of anti-frequency magnetic field and magnetic interference in the national network.
According to RoHS requirements
Large switching power with mini body
Big strength of magnetic latching power, anti-shock of vibration
Pulse drive,economy of power consumption and no heat rising
Permanent magnetic strength to keep stability,and save power consumption
Small contact resistance ,and little self-consumption with reliable working
Custom assemblies available with flex wire and/or copper straps, and/or with integrated shunt
Application Scenarios
1) Smart meters: IC card meters, prepaid meters, single-phase meters, three-phase meters.
2) Reactive power compensation: synchronous switch, composite switch, smart capacitor.
3) Intelligent control: smart home, solar street light control, automation equipment, etc.
4) New Energy Field: EV charger, PV Inverter
Product Parameters
Dimension（mm） 38×30×16.5
Weight ( g ) ≈33g
Contact Arrangement 1A/1B
Contact Material AgSnO2
Ambient Temperature -40~+70℃
Ambient Humidity 45%~90%RH
Vibration 10~55Hz,1.5mm(DA)
Nominal Voltage 6~48VDC
Power Consumption Single Coil:1.5W, Dual Coil:3W
Max. Switching Voltage 250VAC
Max. Switching Current 60A
Max. Switching Power 15000 VA
Contact Resistance <1.5 mΩ
Insulation Resistance 1000MΩ（DC 500V）
Dielectric Creepage 10mm
Electrical Life ＞10,000cycles
Mechanical Life ＞100,000cycles
